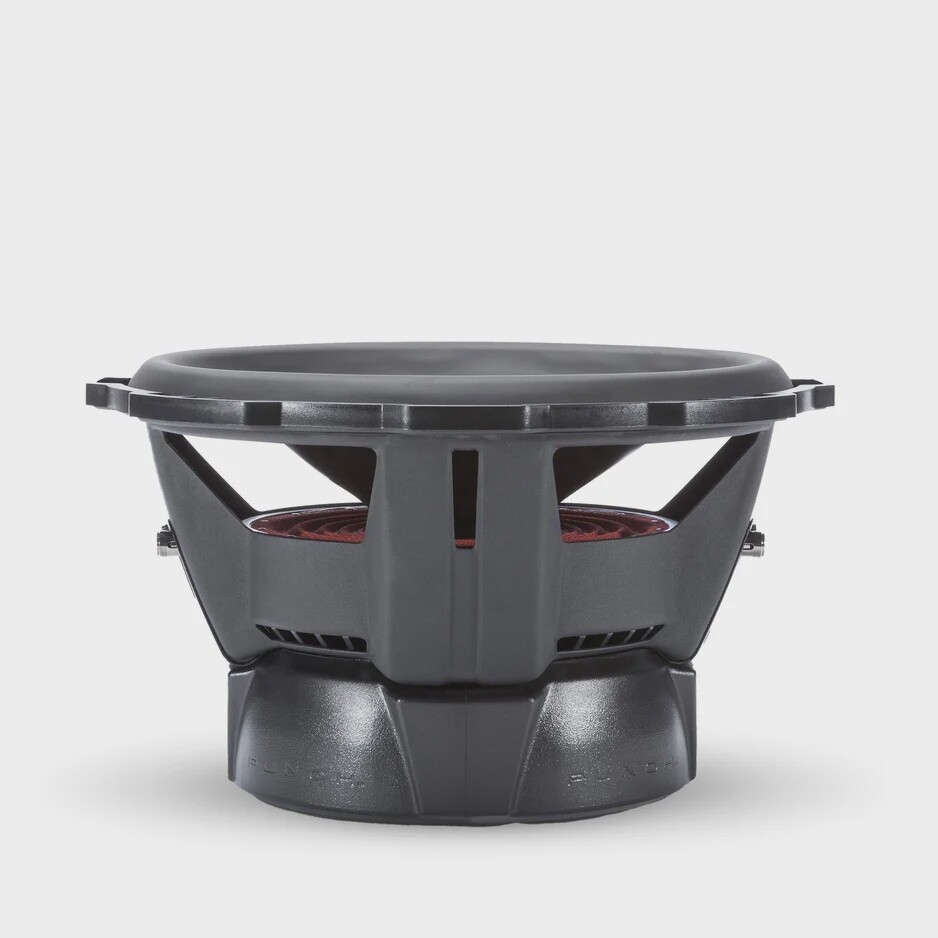

ROCKFORD FOSGATE CAR AUDIO 12" PUNCH SUBWOOFER 1200 WATT DUAL 4 OHM P3D4-12

Rockford Fosgate Car Audio 12 Punch Subwoofer 1200 Watt Dual 4 Ohm P3D4-12

The P3D4-12 is Rockford Fosgate's best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Highlights

• Custom 10-AWG nickel plated push terminals.
• Dual linear spider with embedded 16 AWG tinsel leads.
• Anodized aluminum cone and dustcap.
• High-temp voice coil with spun-laced Nomex reinforced collar.
• Extended pole piece and bumped vented backplate.
• Protective PVC textured magnet cover.
• 1 Year Manufacturer Warranty.
• Diamond cut cast aluminum trim ring with optional grille.
• StampCast basket with integrated spider venting.

This listing includes:
(1) Rockford Fosgate 12 Subwoofer P3D4-12
(1) Rockford Fosgate 12 Trim Ring
Mounting Hardware and Manual included.

Specifications Per Subwoofer:

• Nominal Diameter: 12
• Nominal Impedance: Dual 4 Ohm
• MAX Power Handling: 1200 Watts
• RMS Power Handling: 600 Watts
• Sensitivity (1w/1m): 85dB
• Frequency Response: 27.7 ~ 250 Hz
• Recommended Lo Pass Crossover: 80 ~ 100Hz @ 12dB/Octave

Motor:

• Voice Coil Diameter: 2.5 (65.5mm)
• Basket Color: Black
• Magnet Material: Ferrite
• Magnet Weight: 96 Oz
• Woofer Displacement: 0.106 ft (3.0 Liters)
• Speaker Connector: Dual 10 AWG Compression

Thiele & Small Parameters:

• Equivalent Volume: Vas - 2.04ft (57.7 Liters)
• Excursion: X-max - 0.547
• Free Air Resonance: Fs - 27.7Hz
• Mechanical Factor: Qms - 5.60
• Electrical Factor: Qes - 0.57
• Total Factor: Qts - 0.52
• DC Resistance: Re - 6.40 Ohm
• Voice Coil Inductance: Le - 6.94mH
• Diaphragm Area: Sd - 570cm

Dimensions Per Subwoofer:

• Sealed Box Volume: 1.02ft (28.8 Liters)
• Vented Box Volume: 1.79ft (50.6 Liters)
• Overall Diameter: 13.07 (13.31 with Trim Ring)
• Front Mount Baffle Cutout: 11.25 (285mm)
• Mounting Depth: 6.66 (169.3mm)
• Overall Depth: 7.57
• Shipping Weight: 20.9Lbs (9.48kg)
