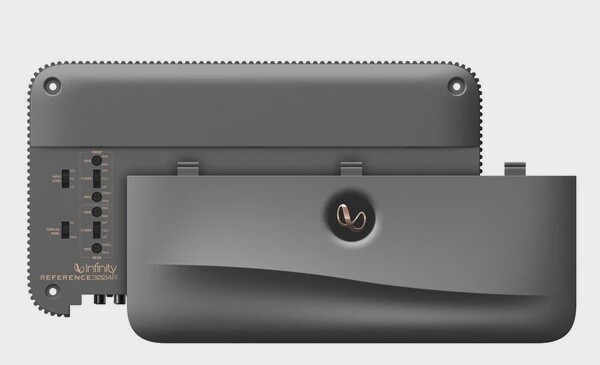

Infinity Reference 3004A (AMPRF3004AAM)

General Features:

• Infinity Reference 3004A
• Class H amp technology 4-Ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 75 watts x 4 chan.
• 2 ohms: 100 watts x 4 chan.
• Bridged, 4 ohms: 200 watts x 2 chan.
• CEA-2006 Compliant Amplifier
• Low-profile chassis and a small overall footprint
• On-board circuitry protects the Reference 3004A from shorts, high-temperature, overvoltage and undervoltage.
• Produces tight bass with low distortion at high SPL
• When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms
• 4 channel operation
• The on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage
• This switch changes DC to REM to adapt with low-level signals or high-level signals
• The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
• Variable high-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Fuse Rating: 30 A x 2
• 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 12-5/8"W x 7"D x 2-3/16"H
• 1-year Manufacturer's Warranty
