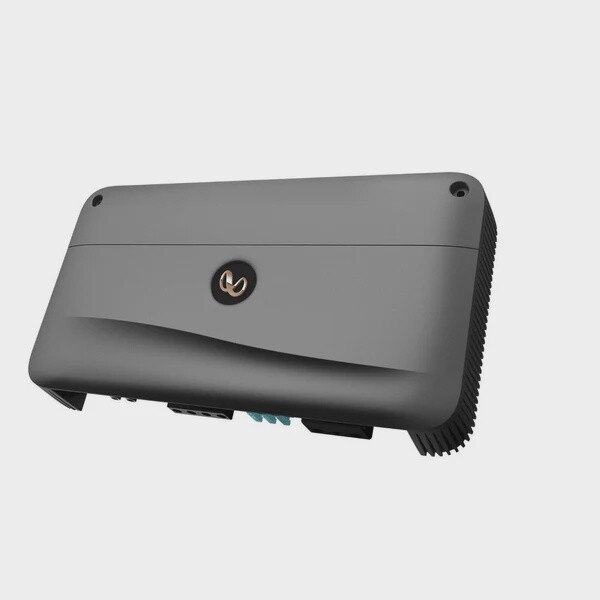

Infinity Reference 10001A (AMPRF10001AAM)

General Features:

• Infinity Reference Series 10001A
• Class D 4-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 600 watts x 1 chan.
• 2 ohms: 1000 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• Low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
• Speaker-level and low-level inputs allow the Reference 6001A to integrate with both aftermarket and factory car stereo systems.
• Variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
• Engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels.
• When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms
• On-board circuitry protects the Reference 10001A from shorts, high-temperature, overvoltage and undervoltage
• This switch changes the input phase to inverted or non-inverted.
• The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
• Variable high-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Fuse Rating: 35 A x 3
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 12-5/8"W x 7-3/4"D x 2-1/4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
