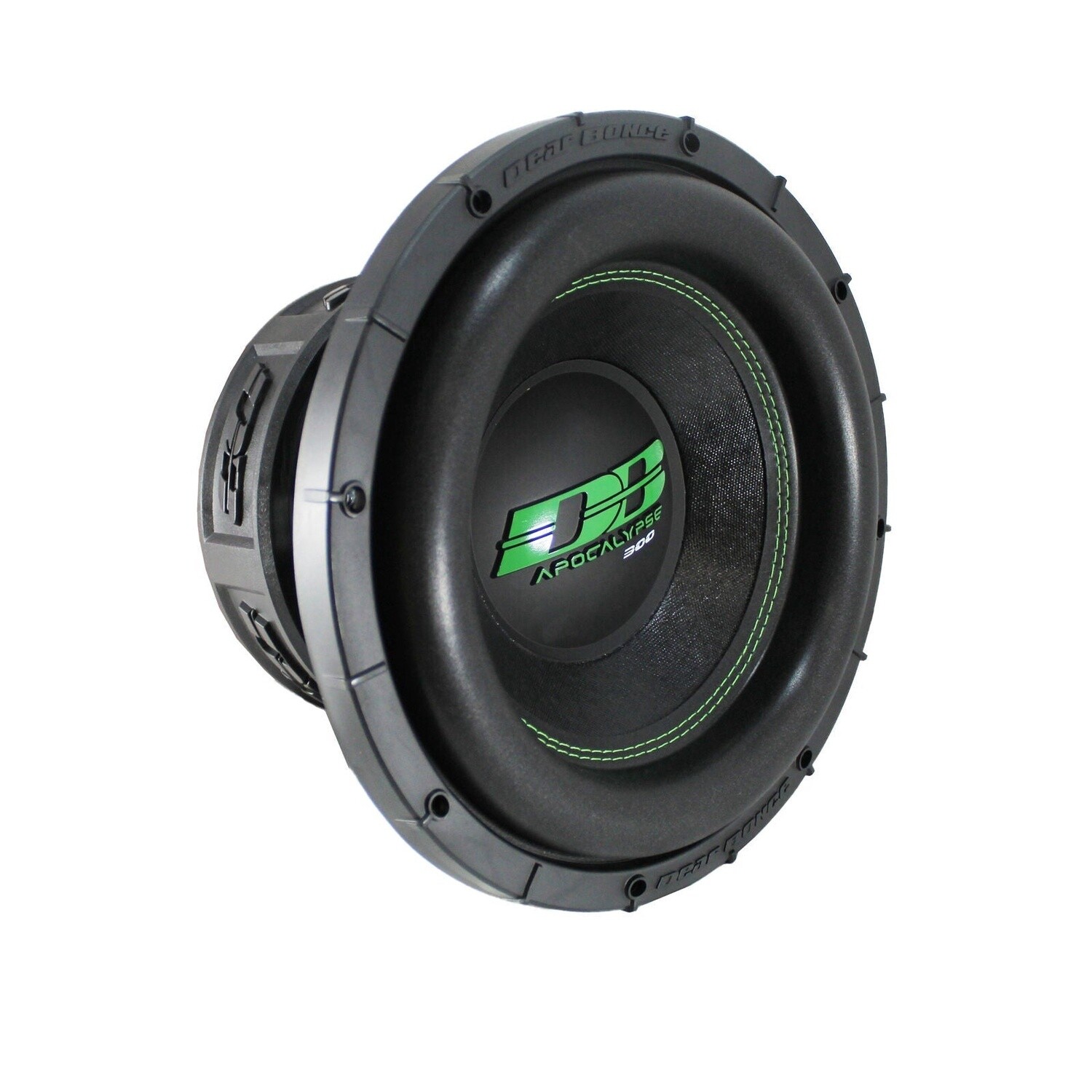

DEAF BONCE CAR AUDIO 12" SUBWOOFER 4000 WATT DUAL 2 OHM VC APOCALYPSE SA302-D2

Deaf Bonce Car Audio 12" Subwoofer 4000 Watt Dual 2 Ohm VC Apocalypse SA302-D2

This Listing Includes:
(1) Deaf Bonce 12" Subwoofer SA302-D2

Specifications Per Subwoofer:

• Nominal Diameter: 12"
• Nominal Impedance: 2+2 Ohm
• MAX Power Handling: 4000 Watts
• RMS Power Handling: 2000 Watts
• Sensitivity (1w/1m): 86.70dB
• Frequency Response: 35.67Hz

Motor:

• Voice Coil Diameter: 3"
• Winding Material: CCAW
• Cone Material: Pressed Paper
• Surround Material: Foam
• Basket Material: Aluminum
• Magnet Material: Ferrite

Thiele & Small Parameters:

• Equivalent Volume: Vas - 24L
• Excursion: X-max - 18mm
• Free Air Resonance: Fs - 35.7Hz
• Total Factor: Qts - 0.34
• DC Resistance: Re - 1.9+1.9 Ohm
• Force Factor: BL - 20.8

Dimensions Per Subwoofer:

• Overall Diameter: 12.6" (321.1mm)
• Front Mount Baffle Cutout: 11" (279.3mm)
• Mounting Depth: 7" (179.5mm)
• Overall Depth: 8.4" (214.1mm)
