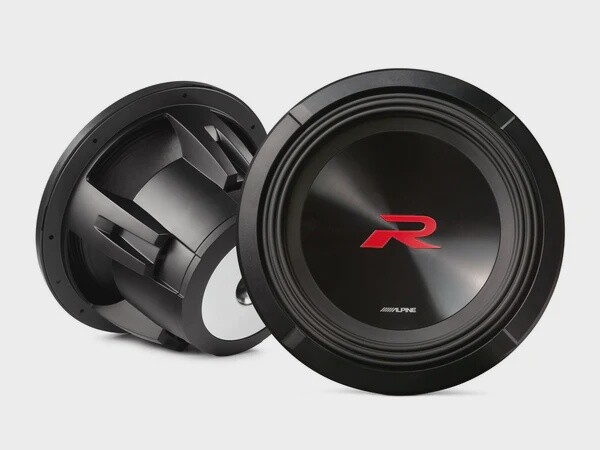

Alpine R2-W12D4 2nd Gen 12" Subwoofer
+4
+3
+2

Alpine R2-W12D4 2nd Gen 12" Subwoofer

SKU R2W12D4
$379.95
In stock: 2 available
1
Product Details
UPC: 793276084651
Brand: ALPINE

Product Details:

  • 12" Dual 4 ohms Type-R Series Series Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Kevlar Reinforced Pulp Paper Cone
  • High-Amplitude Multi-Roll (H.A.M.R) Surround
  • Push-Type Speaker Terminals (Up To 8AWG Wire Size)
  • Oversized Dust Cap
  • 2.6" High Temperature Voice coil
  • 20 mm Xmax
  • 144 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 24 - 200 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 84.6 dB
  • Sealed box volume: .55 cubic feet - 1.0 cubic feet
  • Ported box volume: 1.0 cubic feet - 1.5 cubic feet
  • Top-mount depth: 6.5"
  • Cutout diameter: 10.88"
  • CTA-2031 Compliant: Yes
  • Protective subwoofer grille: Optional (Accessory required and sold separately)
